Extracting and Plotting Position-Velocity Diagrams

Extracting and Plotting Position-Velocity Diagrams#

Authors#

Adam Ginsburg, Eric Koch

Learning Goals#

  • Extract a position-velocity diagram from a spectral cube using both pixel and sky coordinates using pvextractor

  • Display the position-velocity diagram with appropriately labeled coordinates

  • Display the extraction path on the plots

Keywords#

pv-diagram, spectral cube, pvextractor, radio astronomy, coordinates

Summary#

In this tutorial, we will extract position-velocity (PV) diagrams from a spectral cube and plot them.

Position-velocity diagrams are often used in radio astronomy for analysis of rotating objects, like protostellar disks and galaxies, to measure rotation curves and determine the contained mass. They are also used in studies of atomic and molecular clouds to show where overlapping emission may point at interactions between distinct clouds. Both radio and optical position-velocity diagrams are used to study outflows, jets, and winds; in the optical, two-dimensional spectra obtained from long-slit spectrographs naturally produce the equivalent of a position-velocity diagram.

Header material#

We import tools from several packages up front:

import matplotlib.pyplot as plt
from astropy import units as u
from astropy import wcs

from spectral_cube import SpectralCube

from pvextractor import extract_pv_slice, Path

# set so that these display properly on black backgrounds
plt.rcParams["figure.facecolor"] = "w"
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Retrieve and open a cube from astropy-data:

cube = SpectralCube.read("http://www.astropy.org/astropy-data/l1448/l1448_13co.fits")
cube
SpectralCube with shape=(53, 105, 105):
 n_x:    105  type_x: RA---SFL  unit_x: deg    range:    50.924417 deg:   51.740103 deg
 n_y:    105  type_y: DEC--SFL  unit_y: deg    range:    30.301945 deg:   30.966389 deg
 n_s:     53  type_s: VOPT      unit_s: m / s  range:     2528.195 m / s:    5982.223 m / s

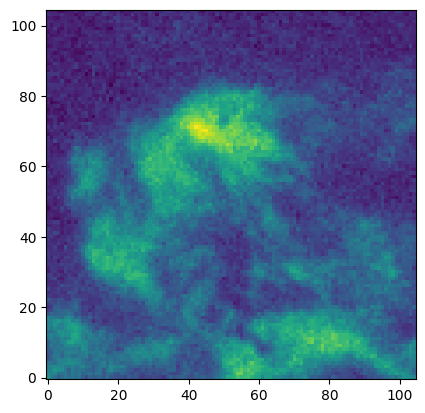

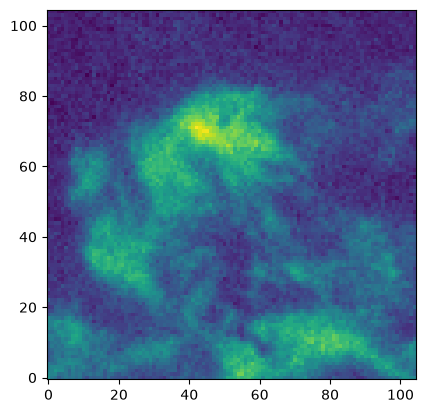

We show a single channel from the cube to visualize the data spatially. We use pixel units to start; we’ll show celestial coordinates later

plt.imshow(cube[25].value, origin="lower")
<matplotlib.image.AxesImage at 0x7ff4d209d070>
_images/b2917bc61dcdd69dfd3503b6c9471069a7752dd9694c41c96aa33e12e102c85b.png

PV Extraction from Pixel Coordinates#

First we create an extraction path. This path is the two-dimensional spatial coordinates through which we are cutting out our PV diagram. It is drawn below.

The entries are pairs of pixel coordinates, (x,y). In this case, we’ve selected arbitrary coordinates for our demonstration, but for your use case, you might pick the axis of an outflow, the major axis of an inclined disk, or a spiral following an arm of a galaxy.

path = Path([(20, 20), (40, 40), (60, 20)])

Then we can overplot it on our figure, now with WCS shown. The plotting uses WCSAxes

ax = plt.subplot(111, projection=cube.wcs.celestial)
ax.imshow(cube[25].value)
path.show_on_axis(ax, spacing=1, color="r")
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")
_images/fd212f5a9ae56474a45098260515f45144919ebd8aea118bb72b96874852592e.png

spacing gives the separation between these points in pixels; we finely sampled by picking one-pixel spacing.

We can then extract the pv diagram, specifying the same spacing.

pvdiagram = extract_pv_slice(cube=cube, path=path, spacing=1)
pvdiagram
<astropy.io.fits.hdu.image.PrimaryHDU at 0x7ff4d1edae10>

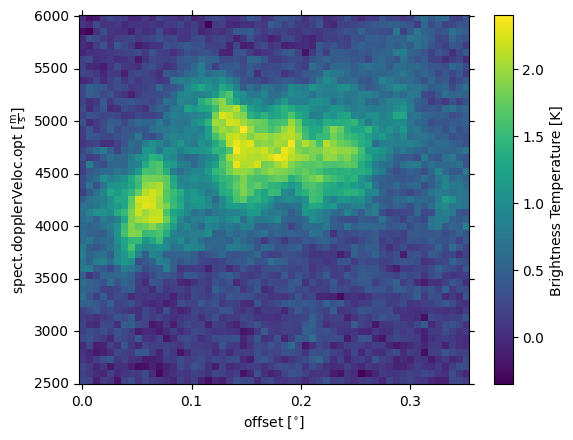

and plot it. pvdiagram is a PrimaryHDU object, so we need to grab the data separately from the header and convert the header to a WCS object:

ax = plt.subplot(111, projection=wcs.WCS(pvdiagram.header))
im = ax.imshow(pvdiagram.data)
cb = plt.colorbar(mappable=im)
# we could specify the colorbar units like this:
# cb.set_label(cube.unit)
# but the 'BUNIT' keyword is not set for these data, so we don't know the unit.  We instead manually specify:
cb.set_label("Brightness Temperature [K]")
_images/995c0f7bd2870706c81c40f41de997d7a270f2d63b590bf43c0a6528f5f5a574.png

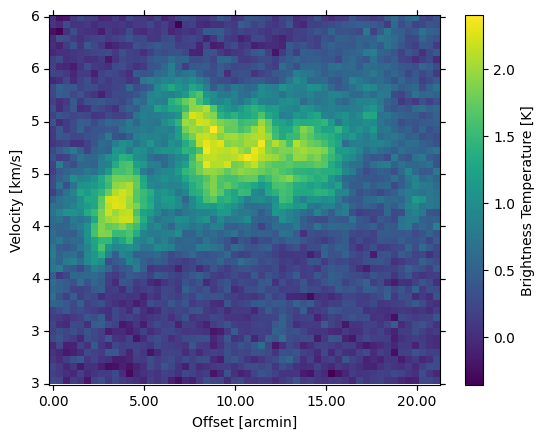

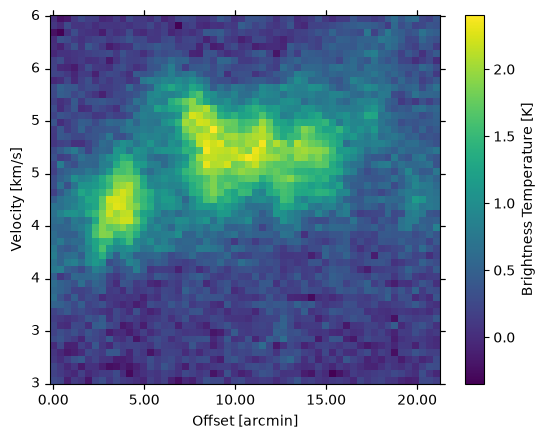

Changing units to the more commonly used km/s and more readable arcminutes can be done with wcsaxes tools:

ww = wcs.WCS(pvdiagram.header)

ax = plt.subplot(111, projection=ww)
im = ax.imshow(pvdiagram.data)
cb = plt.colorbar(mappable=im)
cb.set_label("Brightness Temperature [K]")

ax0 = ax.coords[0]
ax0.set_format_unit(u.arcmin)
ax1 = ax.coords[1]
ax1.set_format_unit(u.km / u.s)

ax.set_ylabel("Velocity [km/s]")
ax.set_xlabel("Offset [arcmin]")
_images/46d92ae87470895a02004c049dad850ad8d10eeba7752ef59582501e3cbf2ac1.png

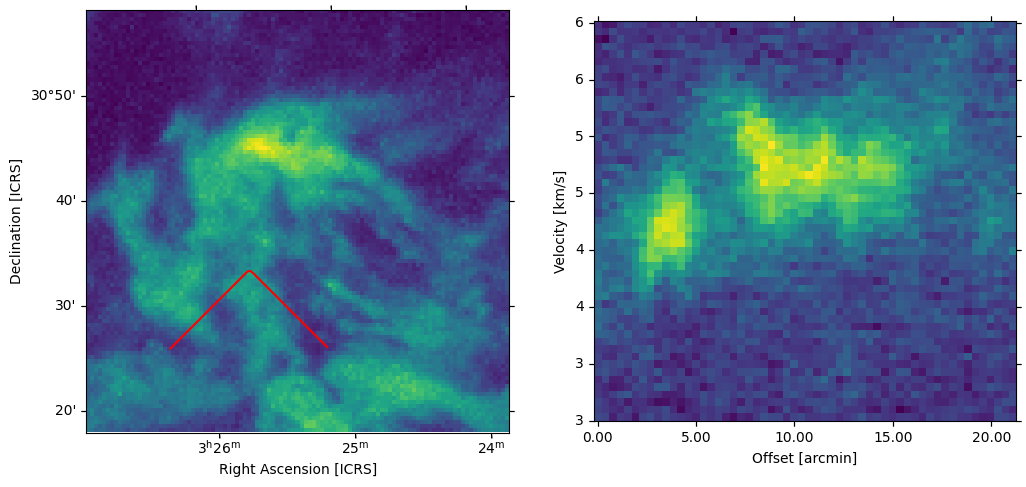

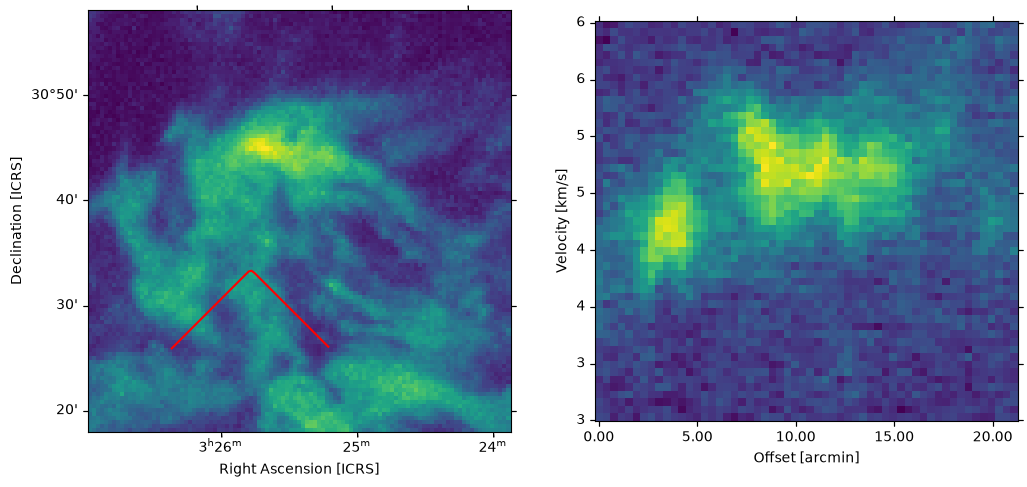

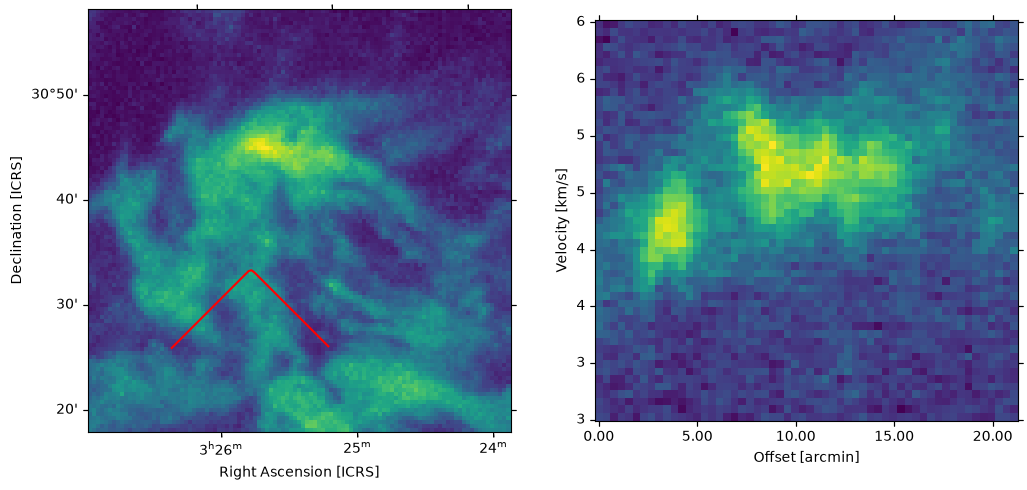

We can put all this together:

# we will use the peak intensity for future display
# the warning here can be ignored because the cube is small,
# but we don't silence it because it's a legit warning when dealing with big cubes
mx = cube.max(axis=0).value
WARNING: PossiblySlowWarning: This function (<function BaseSpectralCube.max at 0x7ff4d284c9a0>) requires loading the entire cube into memory and may therefore be slow. [spectral_cube.utils]
plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection=cube.wcs.celestial)
ax.imshow(mx)
path.show_on_axis(ax, spacing=1, color="r")

ww = wcs.WCS(pvdiagram.header)
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")

ax = plt.subplot(122, projection=ww)
im = ax.imshow(pvdiagram.data)

ax0 = ax.coords[0]
ax0.set_format_unit(u.arcmin)
ax1 = ax.coords[1]
ax1.set_format_unit(u.km / u.s)

ax.set_ylabel("Velocity [km/s]")
ax.set_xlabel("Offset [arcmin]")
_images/da315fcba29db38371d3eada8fd4351a10784e951e55f3b7216663fe2b6e630f.png

PV Extraction from Sky Coordinates#

We can also make paths by supplying coordinates defined in an astropy.coordinates.SkyCoord to pvextractor.Path.

from astropy.coordinates import SkyCoord
skypath = Path(
    SkyCoord([3.4, 3.43, 3.42] * u.h, [30.5, 30.75, 30.5] * u.deg, frame="fk5")
)

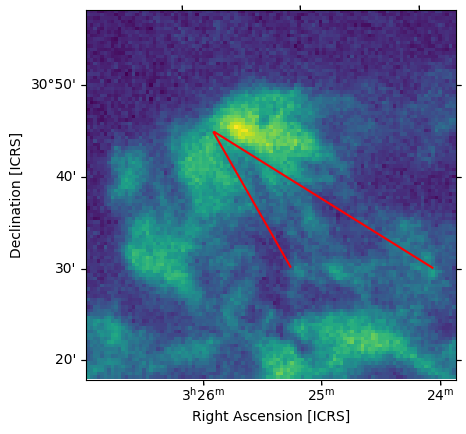

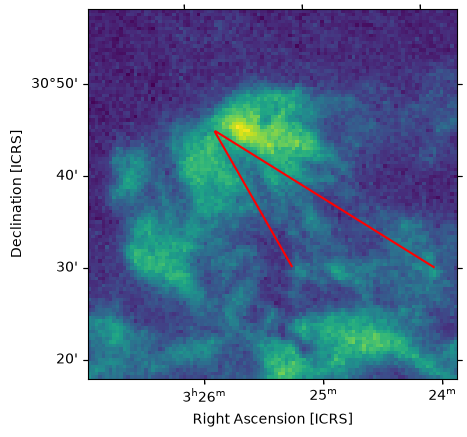

We can plot again; the coordinates will be automatically determined

ax = plt.subplot(111, projection=cube.wcs.celestial)
ax.imshow(cube[25].value)
skypath.show_on_axis(ax, spacing=1, color="r")
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")
_images/a965b3653db7201b837275b5d1b794506a6c8ccd45fbda1382bc864ecfeb0557.png

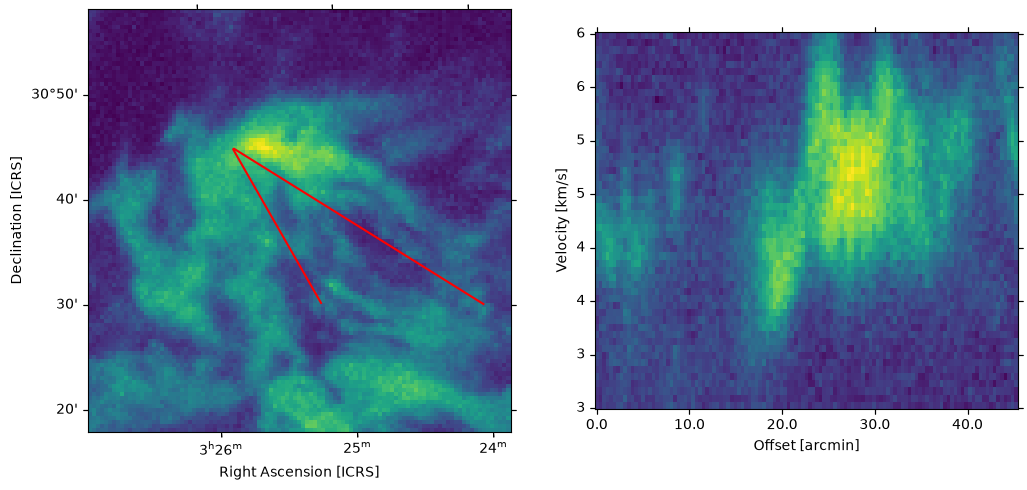

pvdiagram2 = extract_pv_slice(cube=cube, path=skypath)
pvdiagram2
<astropy.io.fits.hdu.image.PrimaryHDU at 0x7ff4d0d14320>
plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection=cube.wcs.celestial)
ax.imshow(mx)
skypath.show_on_axis(ax, spacing=1, color="r")

ww = wcs.WCS(pvdiagram2.header)
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")

ax = plt.subplot(122, projection=ww)
im = ax.imshow(pvdiagram2.data)

ax0 = ax.coords[0]
ax0.set_format_unit(u.arcmin)
ax1 = ax.coords[1]
ax1.set_format_unit(u.km / u.s)

ax.set_ylabel("Velocity [km/s]")
ax.set_xlabel("Offset [arcmin]")
_images/5aea33fc6c4047d8cdeb14e69782e81b894f972bed62efc6937575bbe02153ad.png

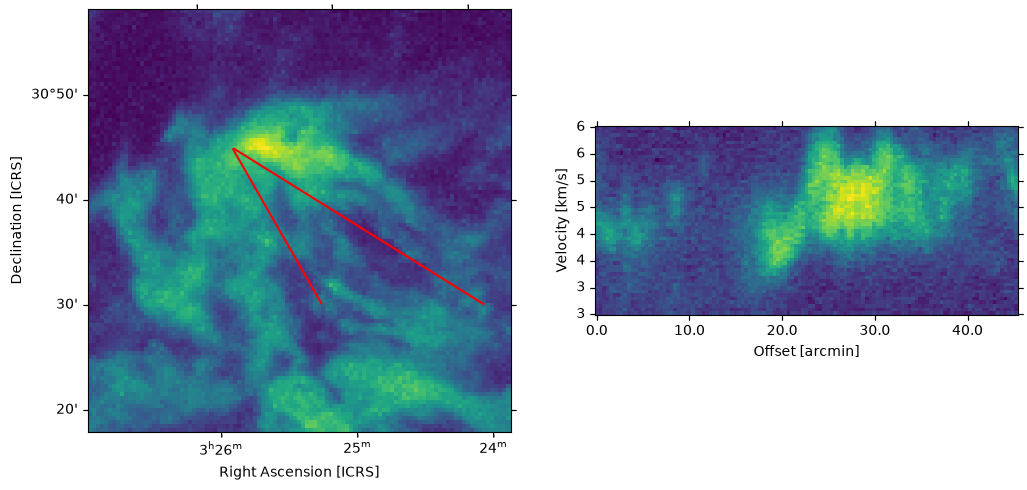

We can also change the aspect ratio of the PV diagram. The figsize parameter controls the figure size, which has some effect, and the ax.set_aspect command controls the aspect ratio of the individually displayed pixels

plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection=cube.wcs.celestial)
ax.imshow(mx)
skypath.show_on_axis(ax, spacing=1, color="r")

ww = wcs.WCS(pvdiagram2.header)
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")


ax = plt.subplot(122, projection=ww)
im = ax.imshow(pvdiagram2.data)
ax.set_aspect(2)

ax0 = ax.coords[0]
ax0.set_format_unit(u.arcmin)
ax1 = ax.coords[1]
ax1.set_format_unit(u.km / u.s)

ax.set_ylabel("Velocity [km/s]")
ax.set_xlabel("Offset [arcmin]")
_images/8ac68421ae8563c47fb3f2b997d28e8eb5a16aac71bc2854e23b2ca153a6c21b.png

PV Extraction with Spatial Averaging#

pvextractor.Path allows you to specify a width to average over, which specifies a spatial range around the path to average over.

In other words, it turns our path into a series of consecutive rectangular regions.

skypath2 = Path(
    SkyCoord([3.4, 3.429, 3.42] * u.h, [30.5, 30.75, 30.5] * u.deg, frame="fk5"),
    width=2 * u.arcmin,
)
pvdiagram3 = extract_pv_slice(cube=cube, path=skypath2)

We can plot this path as a set of patches to show where we averaged. The default spacing is 1 pixel,so we plot 1-pixel chunks.

plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection=cube.wcs.celestial)
ax.imshow(mx)

skypath2.show_on_axis(ax, spacing=1, edgecolor="r", linestyle=":", linewidth=0.75)

ww = wcs.WCS(pvdiagram3.header)
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")

ax = plt.subplot(122, projection=ww)
im = ax.imshow(pvdiagram3.data)
ax.set_aspect(2.5)

cb = plt.colorbar(mappable=im)
cb.set_label("Brightness Temperature [K]")

ax0 = ax.coords[0]
ax0.set_format_unit(u.arcmin)
ax1 = ax.coords[1]
ax1.set_format_unit(u.km / u.s)


ax.set_ylabel("Velocity [km/s]")
ax.set_xlabel("Offset [arcmin]")
_images/f7278964029659e3a6981c6632cc08ff6b50fa76d788a50d7c8015ccae0091f5.png

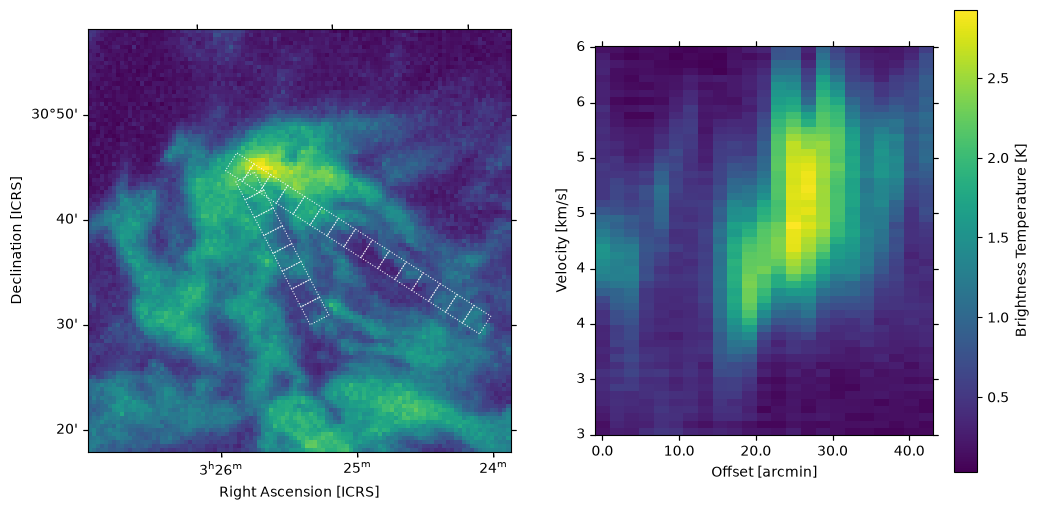

We can also have more widely spaced chunks.

Note that the spacing given to extract_pv_slice affects the shape of the output PV diagram, so we also change the aspect ratio:

pvdiagram4 = extract_pv_slice(cube=cube, path=skypath2, spacing=5)

fig = plt.figure(figsize=(12, 6))
ax = plt.subplot(121, projection=cube.wcs.celestial)
ax.imshow(mx)
skypath2.show_on_axis(ax, spacing=5, edgecolor="w", linestyle=":", linewidth=0.75)

ww = wcs.WCS(pvdiagram4.header)
ax.set_xlabel(f"Right Ascension [{cube.wcs.wcs.radesys}]")
ax.set_ylabel(f"Declination [{cube.wcs.wcs.radesys}]")

ax = plt.subplot(122, projection=ww)
im = ax.imshow(pvdiagram4.data)
cb = plt.colorbar(mappable=im)
cb.set_label("Brightness Temperature [K]")
ax.set_aspect(0.5)

ax0 = ax.coords[0]
ax0.set_format_unit(u.arcmin)
ax1 = ax.coords[1]
ax1.set_format_unit(u.km / u.s)

ax.set_ylabel("Velocity [km/s]")
ax.set_xlabel("Offset [arcmin]")

_images/c7d436decf23752eaace748aac91c60eed75b2b780b3a463b5ec630cf60e809d.png

Saving#

Finally, we can save the extracted PV diagram as a FITS file:

pvdiagram.writeto("saved_pvdiagram.fits", overwrite=True)

We can also save the figure as a png or pdf:

fig.savefig("saved_pvdiagram.png", bbox_inches="tight")
fig.savefig("saved_pvdiagram.pdf", bbox_inches="tight")
